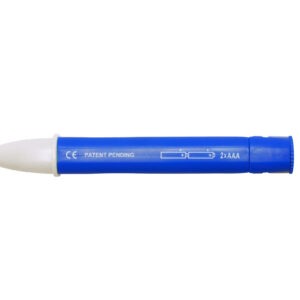

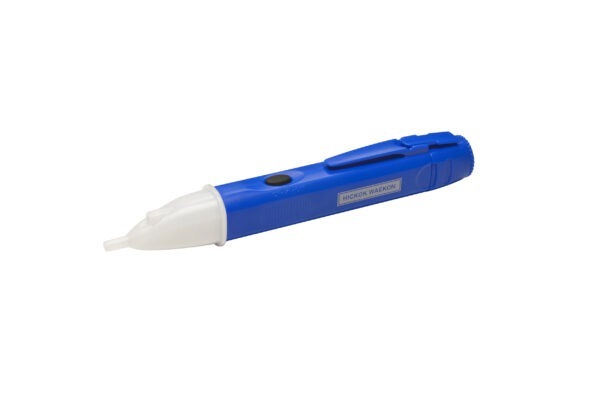

76500 Ignition Coil Tester
Instantly verify an active or inactive coil, Non-intrusive quick check tool.
- Description
- Additional information
- Reviews (0)
- Attachments
- Store Policies
- Inquiries
Description
Non-Intrusive Ignition Coil Tester

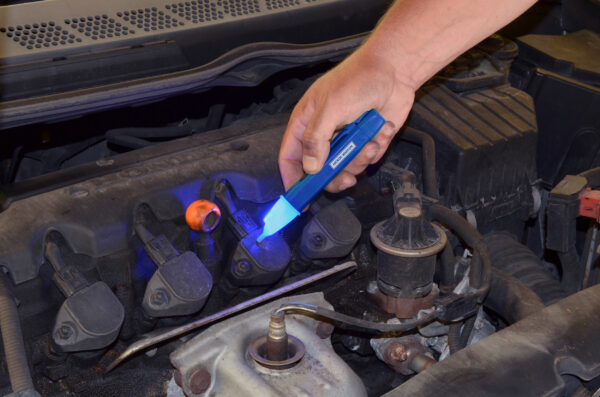

Easy to use and saves time. Instantly verify an active or inactive ignition coil by simply placing the sensing tip near the coil while engine is cranking or running at idle. During normal operation, an ignition coil creates an open magnetic field each and every time the coil is energized. By placing the sensing tip of the tool near or against the ignition coil, a blue LED will illuminate each time a magnetic field is detected.
Quickly test coil on plug, coil near plug and coil pack ignition systems without any disassembly. Save time by using the pocket sized tester to identify spark related problems on combustion engines.
Features & Benefits
- Quick, easy testing. – Non-intrusive, quick check tool instantly verifies active or inactive coil operation.
- Designed for versatile testing. – Tool can be used to test coil on plug, coil near plug, and coil pack systems.
Specifications
Please refer to the User Guide for a full list of specifications
- Power supply: 2xAAA (LR03) battery
- Sensitivity: 300 Gauss (30m T)
- Operating temperature: 14 to 122°F
- Operating humidity: <80%
- Overvoltage: CAT III 1000V AC
Kit Contents
- Ignition Coil Tester
- Self Test Magnet Cap
- (2) AAA (LR03) Battery
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 9 × 5 × 3 in |
Be the first to review “76500 Ignition Coil Tester”
General Inquiries
There are no inquiries yet.
- Buy Now
Availability: Usually ships in 2-4 business days.
MSRP
$25.40
